How to Choose the Right Insulation Material for Electrical Transformers？

Electrical transformers are crucial components in electrical systems, used to transfer electrical energy between circuits. Insulation materials are used in transformers to prevent electrical arcing, reduce energy loss, and protect the transformer from environmental factors such as moisture and temperature fluctuations. In this essay, we will discuss how to choose the right insulation material for electrical transformers.

Factors to Consider When Choosing Insulation Material

Electrical Properties: The insulation material should have high dielectric strength to withstand high voltage without breaking down. It should also have low dielectric loss to reduce energy loss and interference.

Thermal Properties: The insulation material should have good thermal stability to withstand high temperatures without degrading or losing its insulating properties. It should also have good thermal conductivity to dissipate heat from the transformer.

Mechanical Properties: The insulation material should have good mechanical strength to withstand mechanical stress and vibration. It should also have good flexibility to allow for easy installation and maintenance.

Environmental Properties: The insulation material should be resistant to environmental factors such as moisture, chemicals, and UV radiation. It should also be able to withstand temperature fluctuations without degrading.

Types of Insulation Materials for Transformers

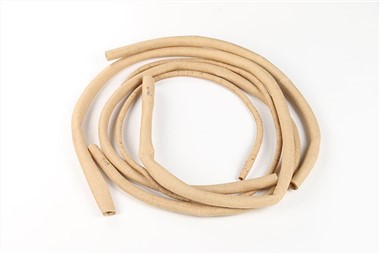

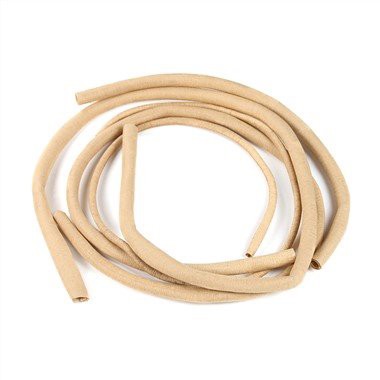

Cellulose-Based Materials: Cellulose-based materials such as paper, pressboard, and cotton cloth are commonly used as insulation materials in transformers. They have good electrical and mechanical properties and are relatively inexpensive. However, they are prone to moisture absorption and require impregnation with insulating oil to improve their performance.

Mineral-Based Materials: Mineral-based materials such as mica and glass are also used as insulation materials in transformers. They have high thermal stability and excellent electrical properties. However, they are brittle and require careful handling during installation.

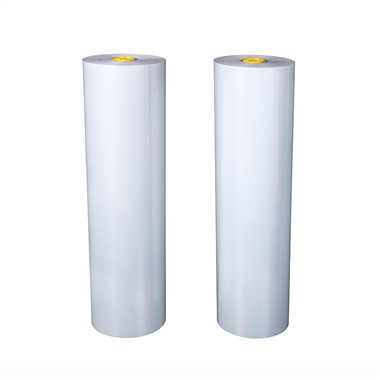

Polymer-Based Materials: Polymer-based materials such as epoxy and polyester are increasingly being used as insulation materials in transformers. They have excellent electrical and mechanical properties, are resistant to environmental factors, and require no impregnation with insulating oil. However, they are relatively expensive.

Choosing the Right Insulation Material

When choosing the right insulation material for a transformer, it is important to consider the specific requirements of the application. For example, if the transformer is operating in a harsh environment with high moisture levels, a cellulose-based material impregnated with insulating oil may be the best choice. If the transformer is operating at high temperatures, a mineral-based material such as mica may be more suitable.

In recent years, polymer-based materials have become increasingly popular due to their excellent properties and low maintenance requirements. However, they are relatively expensive and may not be suitable for all applications.

In conclusion, choosing the right insulation material for an electrical transformer is critical to ensuring its safety, reliability, and efficiency. Factors such as electrical, thermal, mechanical, and environmental properties should be considered when selecting an insulation material. Cellulose-based, mineral-based, and polymer-based materials are commonly used as insulation materials in transformers, each with its own advantages and disadvantages. By understanding the specific requirements of the application, we can select the right insulation material for a transformer and ensure the safety and efficiency of our electrical system.
