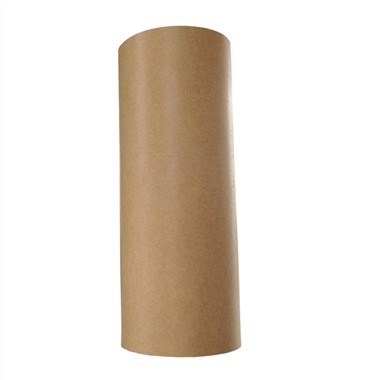

Insulation Cable Paper

Insulation Cable Paper

Used widely as electrical insulation wrap on aluminium and copper wires by conductor manufacturers, --electrical insulation between layers of wound coils in.

ISO 9001:2015 ISO 14001:2015 ISO 45001:2018 UL E310670 RoHS REACH

Description

Used widely as electrical insulation wrap on aluminium and copper wires by conductor manufacturers, --electrical insulation between layers of wound coils in electrical motors, in capacitors, transformers & such other electrical equipment. Description It is manufactured from 100% high-quality sulfate insulating wood pulp.

Applications

Used widely as electrical insulation wrap on aluminium and copper wires by conductor manufacturers,

electrical insulation between layers of wound coils in electrical motors, in capacitors, transformers & such other electrical equipment.

index name

unit

Parameter values

Nominal thickness

μm

50

75

Thickness tolerance

μm

-2-4

-3-6

Gegree

g/cm3

≤0.82

≤0.82

Tensile strength

longitudinal longitudinallongitudinallongitudinallongitudinal longitudinal

kN/m

3.27-4.05

4.58-4.90

transverse

1.44-1.58

1.96

Elongation

longitudinal longitudinallongitudinallongitudinallongitudinal longitudinal

%

2.0-2.5

2.0-2.8

transvers

4.0-6.9

4-8.4

Folding resistance (double folding times)

次

427-1355

687-1222

Electrical conductivity of water extract

mS/m

≤10

Moisture

%

5-8

Ash

%

0.26-1.0

0.3-1.0

Storage requirements

Should be stored in the temperature is not more than 40 ℃, dry, clean and ventilated warehouse, shall not be close to the fire, heat and sunlight.

Storage period

It is 12 months from the date of leaving the factory. If it is more than 12 months, it shall be inspected according to the product standard.

Packaging

Roll packing

Specifications

index name

unit

Parameter values

Nominal thickness

μm

50

75

Thickness tolerance

μm

-2-4

-3-6

Gegree

g/cm3

≤0.82

≤0.82

Tensile strength

longitudinal longitudinallongitudinallongitudinallongitudinal longitudinal

kN/m

3.27-4.05

4.58-4.90

transverse

1.44-1.58

1.96

Elongation

longitudinal longitudinallongitudinallongitudinallongitudinal longitudinal

%

2.0-2.5

2.0-2.8

transvers

4.0-6.9

4-8.4

Folding resistance (double folding times)

次

427-1355

687-1222

Electrical conductivity of water extract

mS/m

≤10

Moisture

%

5-8

Ash

%

0.26-1.0

0.3-1.0

Storage requirements

Should be stored in the temperature is not more than 40 ℃, dry, clean and ventilated warehouse, shall not be close to the fire, heat and sunlight.

Storage period

It is 12 months from the date of leaving the factory. If it is more than 12 months, it shall be inspected according to the product standard.

Packaging

Roll packing
