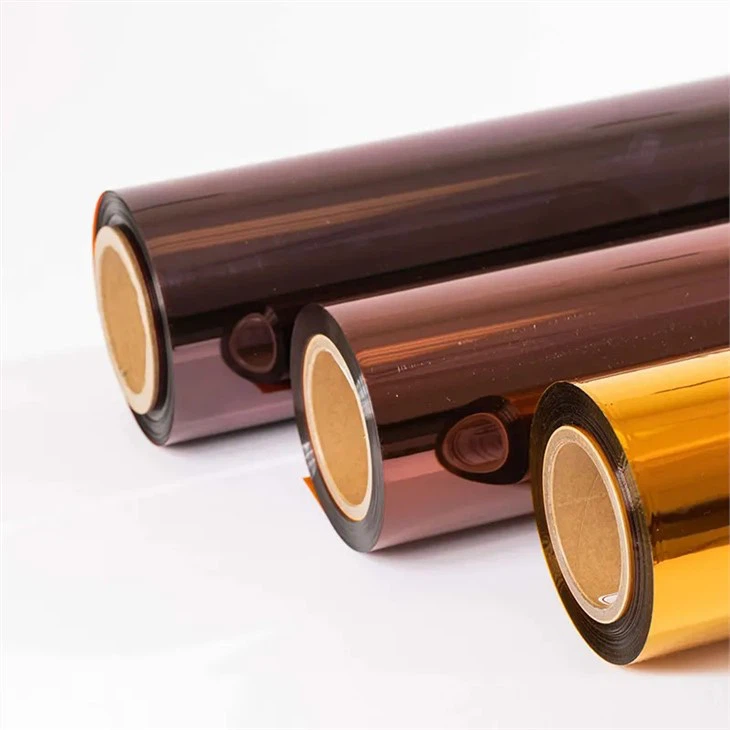

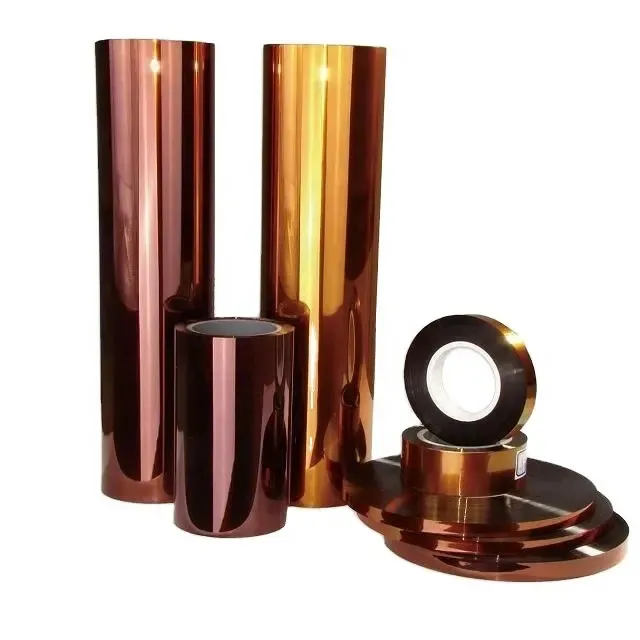

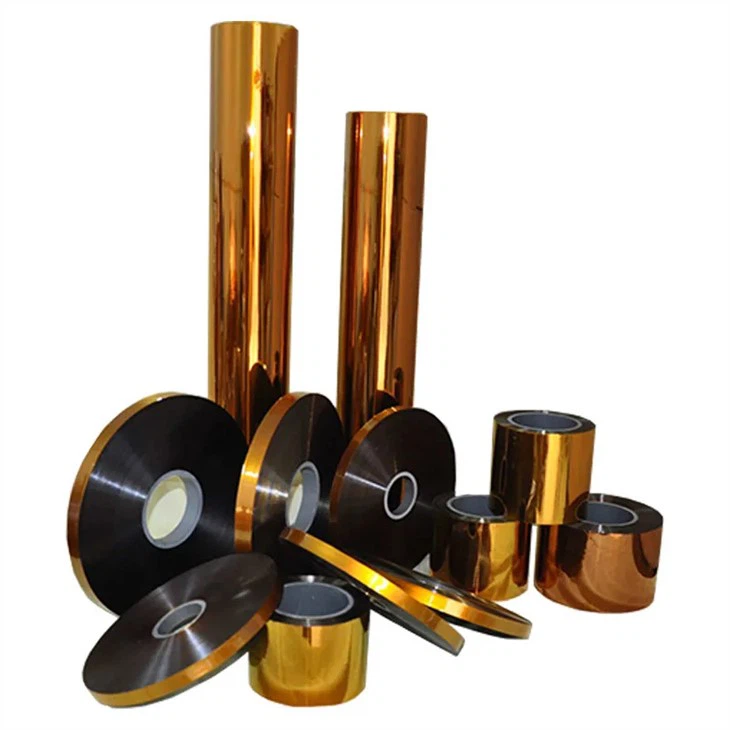

Polyimide Film 6051

Polyimide film made of PMDA 4-formic acid-2-anhydride of benzene (PMDA )and 4.4-diamino-diphenyl-ether oxide (ODA) in film casting machine and then stretched by two directions. Providing high degree of resistance to chemicals and excellent outgasing properties in high vacuum environments.

Send Inquiry

Description

Brief Introduction of the Polyimide Film

Polyimide films provide excellent electrical, thermal, physical and chemical properties over a wide temperature range in a lightweight package (136 sq ft/lb [28 m2/kg] for 1 mil) making them superior for electrical insulation applications.
Polyimide film has the best thermal properties of films available.
—It has no melting point and can be used over a temperature range of -269°C to 350°C (-450°F to 660°F).
—It can be used constantly at a temperature of 240°C (465°F).
—Its physical properties are excellent and include high tensile strength, high resistance to creep, cut-through, abrasion, solvents and chemicals.
—It has high dielectric strength which makes it an ideal insulating material for use with high voltage. Polyimide film will resist radiation and ultraviolet light.
—It is flame retardant rated as UL 94 V-O.

Advantages of our Polyimide Film

—High mechanical performance
—Superior temperature adaptability
—Excellent tensile and compressive strength
—Outstanding chemical resistance
—Transparency in many microwave applications
—Radiation resistance
—Superior bearing and wear properties

Item		Unit	Value
Nominal thickness		um	25	40	50	75	100	125	150	175	250
Thickness tolerance		um	4	4	7	8	7	11	11	12	15
			-3	-4	-6	-6	-7	-7	-7	-8	-10
Tensile strength		um	165	165	165	165	165	165	160	155	150
Breaking elongation		%	40	50	50	50	50	50	50	50	50
AC electric strength(48Hz-62Hz)		V/um	235	200	195	175	145	120	115	100	90
	Range	mm	Allowable deviation
Cutting Width	＜26		±0.4
	26～102		±0.8
	＞102		±1.6
Density		kg/m3	1425±10
Melting point		—	Don't melt
Relative permittivity	50Hz	—	3.5±0.4
23℃	1KHz		3.4±0.4
Dielectric loss factor 23℃,		—	≤4.0×10-3
50Hz or 1Hz
Volume resistively		Ω·m	≥1.0×1010
Surface resistivity		Ω	≥1.0×1014
Dimensional stability (shrinkage rate in vertical and horizontal directions) (only required for thickness ≥25μm)	150℃	%	≤0.35
	400℃		≤2.5
Water absorption (damp for 24h)		%	≤4.0
Long term heat resistance		℃	≥200
Shelf life and conditions		Year	Store at room temperature, two years from the date of delivery. If it exceeds the storage period, it can still be used normally after passing the inspection. Keep away from heat sources, strong acids and alkalis, and avoid long-term ultraviolet light exposure.
