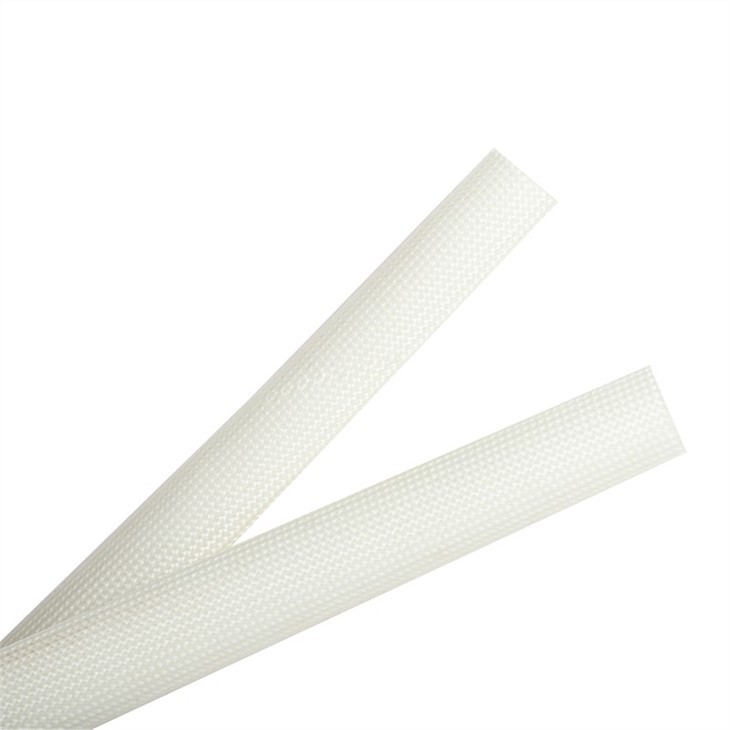

Silicone Resin Fiberglass Sleeving
Silicone resin fiberglass sleeving is braided with E-glass fiber (non-alkali fiberglass yarn), processed under high temperature, and then coated with silicone resin.
Description
Type: 2753 Silicone Resin Fiberglass Sleeving
Insulation class: H (180 degree)
Silicone resin fiberglass sleeving is braided with E-glass fiber (non-alkali fiberglass yarn), processed under high temperature, and then coated with silicone resin.
| Properties | Units | Values | |||
| Jan-53 | Feb-53 | Mar-53 | |||
| Appearance | / | White, both of ends are trimmed. the coating is even, continues, adhered to the fiberglass yarn fast. | |||
| Diameter | 1.0－3.5 | mm | 0.3 | ||
| -0.1 | |||||
| 4.0－10 | 0.5 | ||||
| -0.3 | |||||
| Wall thickness | 1.0－3.5 | ≤0.50 | |||
| 4.0－10 | ≤0.70 | ||||
| Breakdown voltage | KV | ≥4.0 | ≥2.5 | ≥1.5 | |
| Time of self-extinguishment | S | ≤10 | |||
| Heat resistance | / | After the sleeving has been treated under temperature of 250±5 degree in a cabinet for 24hours, the coating of the sleeving should not appear detached, and discolored. | |||
| Storage conditions | / | It should be stored in the dry, clean, and good ventilation,temperature less than 40℃, no fire warmer, no exposure in sun. | |||
| Shelf time | / | 6 months | |||
Advantage:
Silicone resin fiberglass sleeving has good dielectric properties, self-extinguishment, excellent softness and elasticity.
Application:
Silicone resin fiberglass sleeving is widely used as wiring insulation for class H (180 degree) electric motors, domestic electrical appliances, and for the protection of collected strands of wire.
Notice:
1. During slitting and use, edge gaps and cracks should be prevented to avoid tearing during operation and to avoid surface scratches, oil and dust pollution.
2. Store in an environment below 40℃, keep clean and dry, away from heat sources, and avoid direct sunlight.
3. The storage period is one year. If it exceeds the storage period, it can still be used if it passes the test according to the technical requirements.
