Talking About Some Types Of Electrical Insulation Paper

In the realm of electrical engineering and technology, insulation plays a pivotal role in ensuring the safety and efficiency of electrical systems. Among the various insulation materials available, electrical insulation paper stands as a time-tested and versatile option. This paper is designed to provide a barrier between electrical components, preventing the unwanted flow of current and ensuring that devices operate reliably. In this essay, we will delve into some of the prominent types of electrical insulation paper, highlighting their characteristics, applications, and significance in the world of electrical engineering.

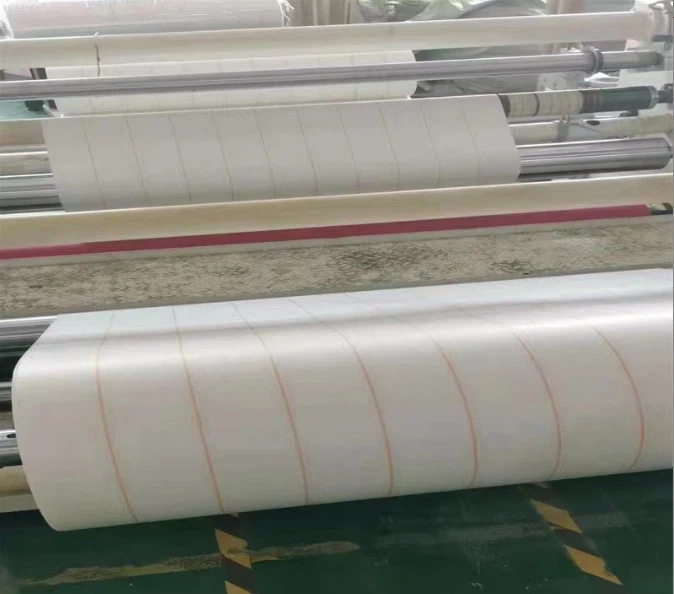

Nomex electrical insulation paper:

Nomex electrical insulation paper is an excellent material used in the construction of electrical equipment. This high-quality insulation paper is widely used in the electrical industry due to its exceptional insulation and mechanical properties.

The insulation paper is made from a special type of aramid fiber that offers remarkable strength and durability. The exceptional thermal and electrical properties of nomex paper make it the ideal insulation material for various electrical applications. Moreover, Nomex paper is known for its high heat resistance and can withstand high temperatures for prolonged periods.

One of the main advantages of using nomex insulation paper is its ability to maintain its electrical insulation performance over time. This material offers excellent resistance to tear and wear, which makes it ideal for long-term use in electrical systems. Additionally, nomex paper is highly resistant to chemical and moisture damage, which helps to prevent electrical failure caused by environmental factors.

Kraft Insulation Paper:

Kraft insulation paper is known for its durability and mechanical strength. It is manufactured by impregnating wood pulp with a synthetic resin, enhancing its resistance to moisture and other environmental factors. Kraft paper is commonly used in transformer and motor insulation systems, providing effective dielectric properties and reliable performance. Its cost-effectiveness and adaptability to various electrical applications contribute to its widespread use.

Fish Paper (Vulcanized Fiber):

Fish paper, also known as vulcanized fiber, is a unique type of electrical insulation material that finds its applications in low-voltage and high-voltage systems. It is manufactured by chemically treating paper with zinc chloride, resulting in a material with excellent dielectric properties and mechanical strength. Fish paper is often used for slot liners, coil separators, and gasket materials in electrical devices. Its ability to be easily punched, cut, and shaped makes it suitable for intricate designs.

Crepe Paper:

Crepe paper is a flexible and highly conformable electrical insulation material. It is manufactured by crinkling kraft paper, giving it a unique texture and stretchability. Crepe paper is frequently used in applications where conformability to irregular shapes is essential, such as in transformer winding and coil insulation. Its elasticity and insulating properties make it a reliable choice for achieving insulation in intricate spaces.

Mica Insulation Paper:

Mica insulation paper combines the properties of natural mica mineral with a suitable binder. Mica paper offers exceptional electrical insulation and thermal resistance. It is used in applications that demand high temperature resistance, such as in induction motors, high-voltage cables, and power generators. Mica paper's ability to withstand extreme temperatures and provide reliable electrical insulation makes it crucial for maintaining the integrity of electrical systems.

Electrical insulation paper plays a critical role in safeguarding electrical systems from the potential risks associated with current leakage, heat, and mechanical stress. The aforementioned types of insulation paper—Nomex, kraft, fish, crepe, and mica—each offer unique characteristics that cater to specific requirements in diverse electrical applications. Whether it's the high-temperature resistance of Nomex, the mechanical strength of kraft, the conformability of crepe, or the thermal stability of mica, each type of insulation paper contributes to the safety, reliability, and efficiency of modern electrical systems.

As a professional insulation material manufacturer, Yanan provide the most complete insulation paper to the worldwide customers. Besides Yaan also provide the insulation varnish, insulation sleeving,board and the insulation tape ,the insulation film and many other insulation materials and etc.
