High Voltage Phenolic Modified Polyester Impregnating Varnish Electrical Insulating Varnish
Composition of the Phenolic Modified Polyester Impregnating Varnish: polyester resin, modified resin, xylene, butyl acetate, etc.
- Model
- YA1040
- Insulation class
- F class (155 °C)
Description
Can be customizedComposition of the Phenolic Modified Polyester Impregnating Varnish: polyester resin, modified resin, xylene, butyl acetate, etc.
Technical Specifications
| No. | Item | Unit | Normal value | ||
| 1 | Appearance | — | Uniform solvation, smooth surface after drying | ||
| 2 | Viscosity,by viscosimeter No.4,at (23±1) °C | s | 35±10 | ||
| 3 | Solid content at 105±2 °C for2h | % | 46±2 | ||
| 4 | Electric strength | At room temperature | MV/m | >70 | |
| Flooding after 24 h | >60 | ||||
| (155±2) °C | >30 | ||||
| 5 | Volume resistivity | At (23±2) °C | Qcm | >1x1O10 | |
| Flooding after 7 days | >1x106 | ||||
| 6 | Solvent Resistance | — | No Change, tack-free, non-foaming, not sticky, at least passed 2 of these 5 solvents | ||
| (Benzol, acetone, Methanol, hexane, | |||||
| carbon disulfide) | |||||
| 7 | Thermal Class | Centigrade | r | >155 | |
| Storage Period | 23°C | M | 6 | ||
| 8 | Recommended | 80±5°C/2h, 125±5°C/2 〜4h, 150±10°C/6 〜8h | |||
| Curing Condition | electric resistance reach the steady value | ||||
Advantages
Phenolic Modified Polyester Impregnating Varnish with F grade insulating material. Has excellent mechanical, heat resistance and electrical properties, long-term operating temperature of 155 °C.
Applications

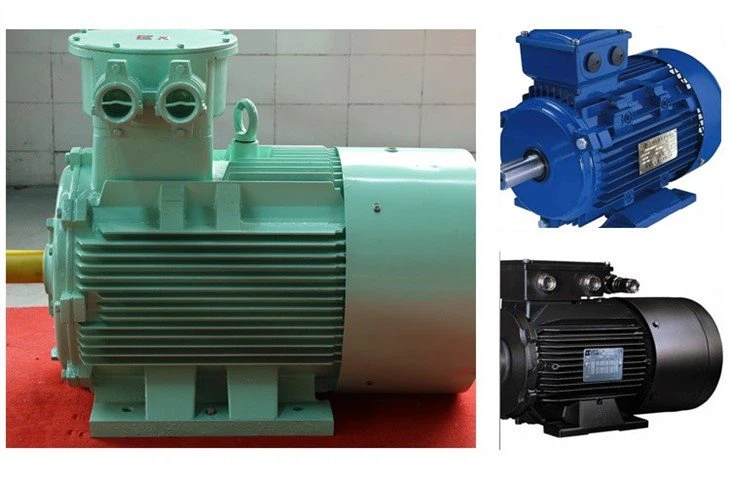

1040 Phenolic Modified Polyester Impregnating Varnish is used for impregnated insulation and protection of F-class motors and electrical windings.
Storage & Notice
1. During slitting and use, edge gaps and cracks should be prevented to avoid tearing during operation and to avoid surface scratches, oil and dust pollution.
2. Store in an environment below 40℃, keep clean and dry, away from heat sources, and avoid direct sunlight.
3. The storage period is one year. If it exceeds the storage period, it can still be used if it passes the test according to the technical requirements.
