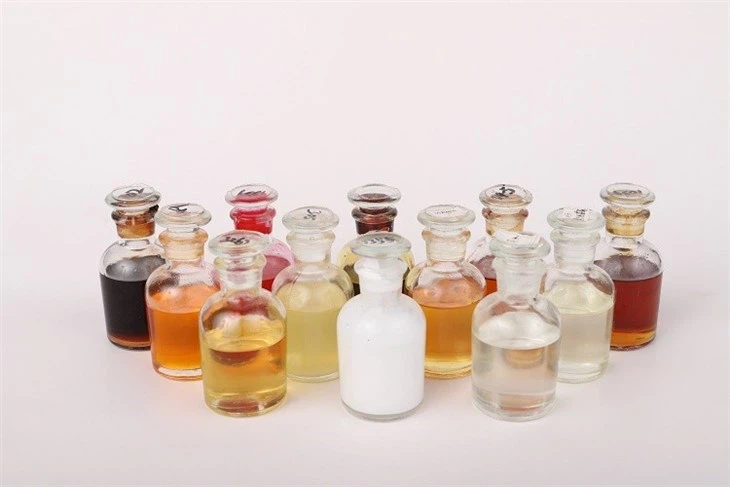

Polyester Modified Silicone Resin Impregnated Varnish for Transformers
Polyester modified silicone insulation impregnating varnish is made by dissolving polyester resin and polymethylphenylchlorosilane in an organic solvent.
- Model
- YA1054
- Insulation class
- H class (180 °C)
Description
Can be customizedPolyester modified silicone insulation impregnating varnish is made by dissolving polyester resin and polymethylphenylchlorosilane in an organic solvent.
Technical Specifications
| Item | Unit | Normal value | |
| Appearance | — | Uniform solvation,be patient of opalescence and smooth surface after drying | |
| Viscosity,by viscosimeter No.4,at (23±1) | s | 20 〜60 | |
| Solid content at 135±2 for 3h | % | 50 〜55 | |
| Drying time at 180±2tJ for 1/10mm | h | <1 | |
| Electric strength | At room temperature | MV/m | >90 |
| At (200±2) | >30 | ||
| ( | >70 | ||
| At (20±5) tJ,relative | |||
| humidity95±3% | |||
| Volume resistivity | (20±5) | Q cm | >1x10,5 |
| (After being humidified for 24h) | At (20±5) | ||
| At (200±2) | >1x10n | ||
| At (20±5) tJ,relative humidity95±3% | 21x10“ | ||
| Storage Period | 25°C | M 6 | |
| Recommended | 85±5tV1 ~2fl+130±5tJ/1 ~2h+160±5tJ/1 ~2h | ||
| Curing Condition | |||
| Item | Unit | Normal value | |
| Appearance | — | Uniform solvation,be patient of opalescence and smooth surface after drying | |
Advantages
Polyester modified silicone insulation impregnating varnish has good anti-humidity and drying properties,strong adhesion,high mechanical strength and lower curing temperature.
Applications
1054 Polyester Modified Silicone Resin Impregnated Varnishcan be used for impregnation of electric motors and electrical coils working in wet tropical, marine mining, traction, smelting, chemical and other environments..
Storage & Notice
1. During slitting and use, edge gaps and cracks should be prevented to avoid tearing during operation and to avoid surface scratches, oil and dust pollution.
2. Store in an environment below 40℃, keep clean and dry, away from heat sources, and avoid direct sunlight.
3. The storage period is one year. If it exceeds the storage period, it can still be used if it passes the test according to the technical requirements.
